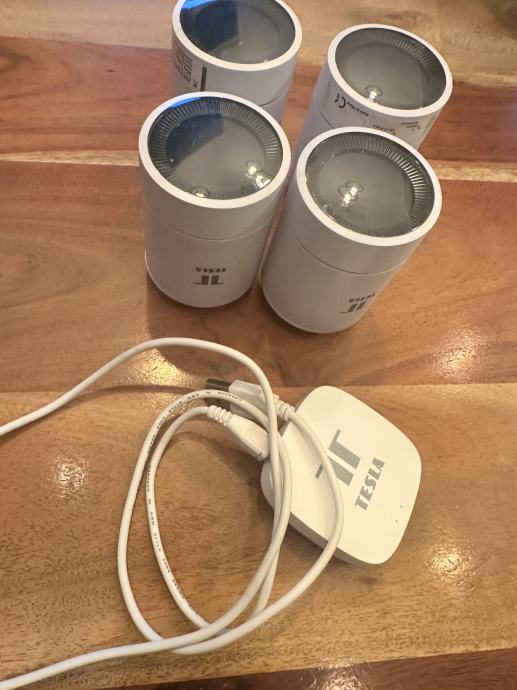

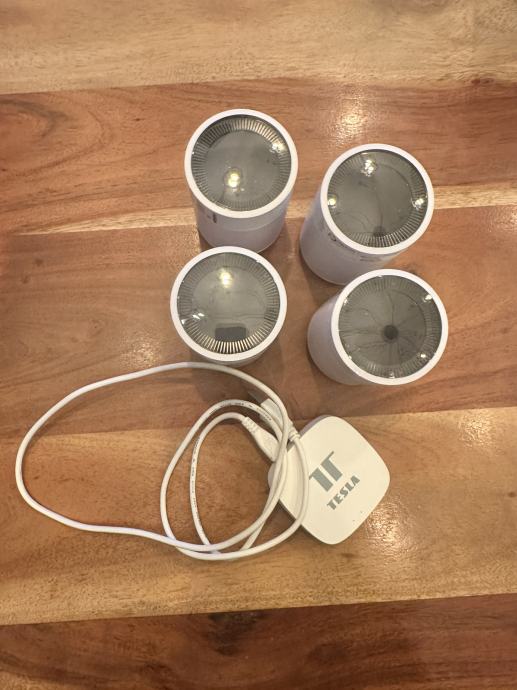

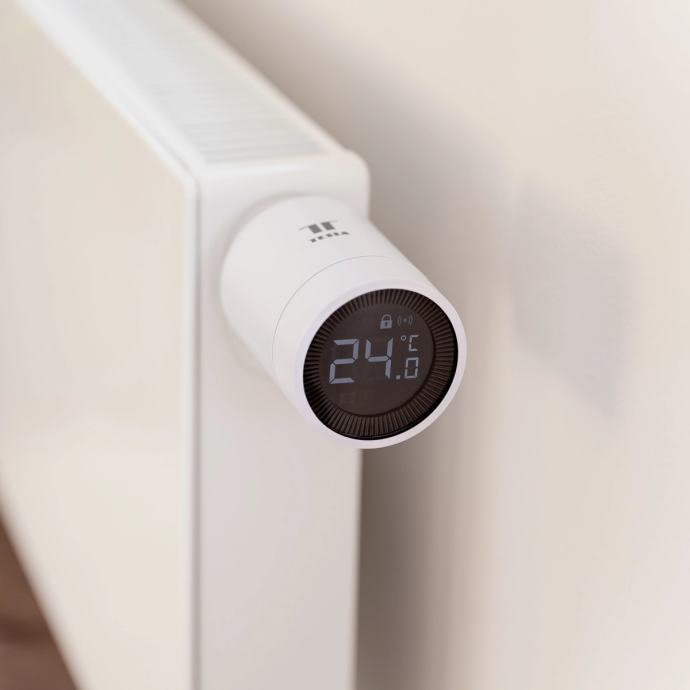

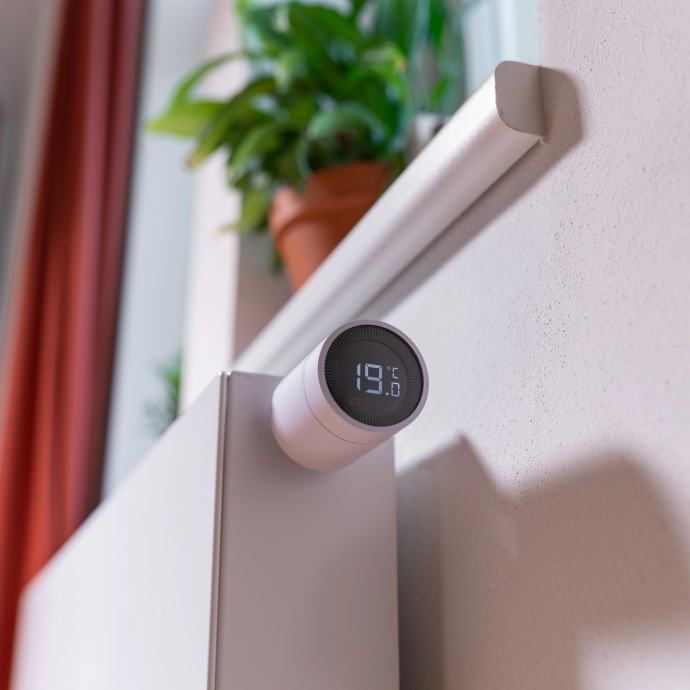

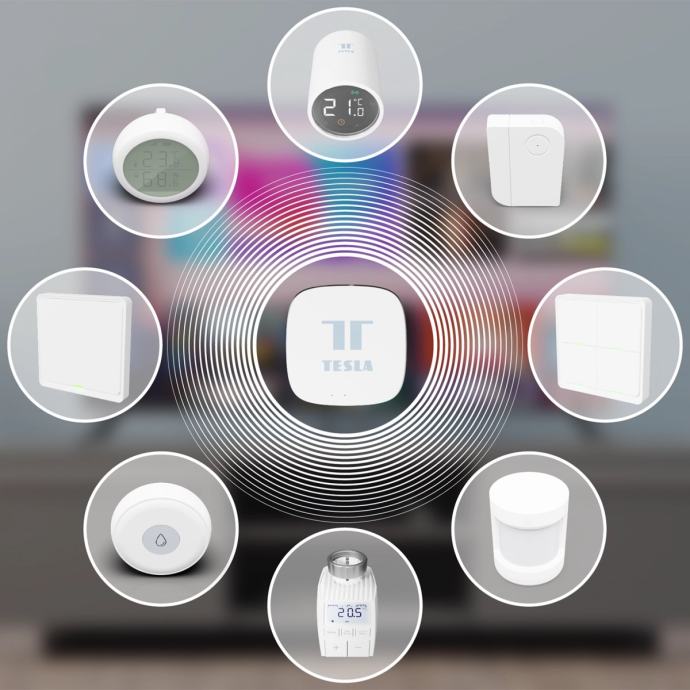

Zaradi selitve prodam 4 pametne termostatske glave TESLA z vmesnikom ZEGBEE hub1 . Stari so 1 leto in delujejo brezhibno .

Overview

Radiator Thermostat (GS361-H04), using a dry battery power supply, without wiring, easy installation, for the temperature control of warm water radiator, provide comfortable temperature, reduce energy waste, save the cost of heating users. This product has a built-in Zigbee® (Tuya) wireless communication module with low power and an LCD display screen. It can be used individually and can be added to the Tesla Smart APP to make it an intelligent thermostat. After joining the Tesla Smart system, you can select the mode, set the temperature, set the child lock, and set the window detection function in APP. Any operation at the device side will also be synchronized to APP, such as setting temperature manually.

Features

3 mode settings—Automatic mode (For future), Manual mode, and Anti-freezing mode.
Temperature settings range from 5~30°C(For Automatic mode and Manual mode) or 5~15°C(For Anti-freezing mode).
With an LCD display screen and big characters, easy to see.
Battery life depends on networking or not. (1~2 years for networking, 2~3 years for using alone)
zigbee® wireless communication protocol is safe, reliable, and convenient.
Easy to join TeslaSmart intelligent system
Illustration

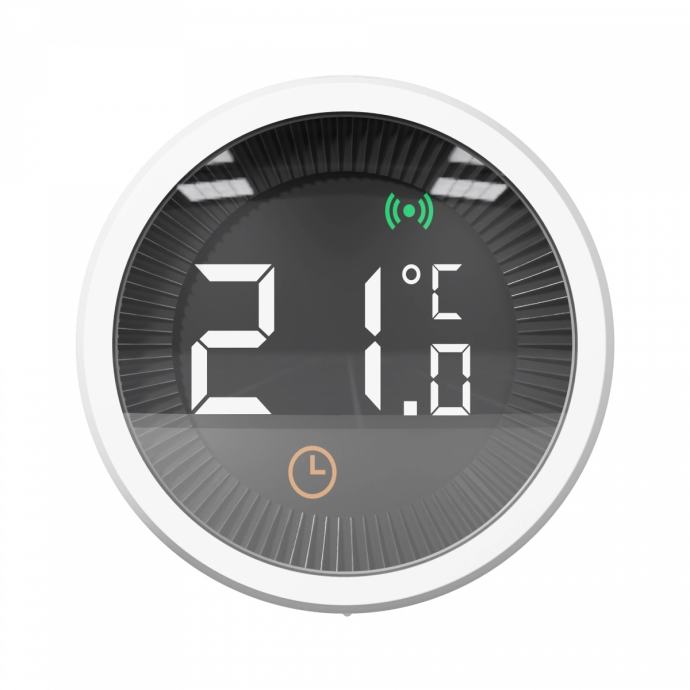

LCD display screen
Knob / Press: Setting mode / Rotate: Adjusting temperature
Interface nut
TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig

Fault
Low battery
Temperature you set
Window Detection
Automatic mode
Manual mode
Installation mode
Networking
Child lock
Installation Instruction

4.1 Put in the battery

TESLA TSL TRV GS361A Smart Thermostatic Valve Style - battery

Turn the outer case towards the arrow with the right hand and pull out.
Referring to the polarity direction of the battery compartment, put in 2 AA alkaline batteries.
Note that cannot use rechargeable batteries.TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig1
After putting it into the batteries, the current temperature and symbolTESLA TSL TRV GS361A Smart Thermostatic Valve Style - sambly will be displayed.
Load the outer case and turn it in the opposite direction with a right hand to complete the installation of batteries.
4.2 Start to use
You can use your thermostat in only a few steps.

TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig2

Press the knob and hold on for 3 seconds before the product is installed on the valve.
Until theTESLA TSL TRV GS361A Smart Thermostatic Valve Style - sambly appears and the symbolTESLA TSL TRV GS361A Smart Thermostatic Valve Style - sambly1 flickers, there will be slight vibration at the same time.TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig10
Align the thermostat interface nuts to the radiator valve. Then push forward slightly and turn the interface nuts clockwise until tightening. The maximum torque
is 5N·m.
Press the knob again and appears.TESLA TSL TRV GS361A Smart Thermostatic Valve Style - sambly2
After about 10 seconds, the symbolTESLA TSL TRV GS361A Smart Thermostatic Valve Style - sambly disappears and the current temperature is displayed.
The installation is finished.
In order to minimize the influence of the radiator‘s own heat on the thermostat, it is recommended to install it as follows.
TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig3

4.3 Automatic detection

When the thermostat is installed, the equipment will be adjusted automatically according to the heating system. During this process, you may find that the thermostat is a slow response or self-heating / self-cooling. This is normal and is a necessary part of the adjustment process.
Thethermostatwillclosetheradiatorvalveataspecifictime, and then opens it again to detect the exact opening position of the valve. The automatic detection function can make use of heat as efficiently as possible and control the temperature more accurately.
If necessary, please reload the battery and activate the installation mode and manually run the automatic detection function.
4.4 About valve

TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig4

Installation diagram of valve A.
Installation diagram of valve B.

Operation instruction

5.1 Select mode locally
In standby status, press the button to switch to three modes: Automatic, Manual, and Anti-freezing.

• Automatic mode (For future)
In automatic mode, the thermostat automatically switches to the required temperature, such as set at 21°C when being home, set at 17°C when sleeping, and set at 15 °C when being away home. The automatic mode needs to connect to the gateway and needs a network.
• Manual mode, this temperature you set will not change because of the different situation mode. the temperature can be set manually by adjusting the knob and the temperature range is 5~30°C.

•Anti-freezing mode
In anti-freezing mode, while you leave home for a long time, set the thermostat as an anti-freezing mode with a range of 5~15°C. This mode is mainly designed to protect water pipes from freezing at low temperatures.
5.2 Set temperature locally
Under the standby status, turn around the knob can adjust the temperature after pressing the knob.

5.3 Set child lock locally
Long press the thermostat knob to turn on or close the child lock function, as shown in the following figure. When the child lock function enables, all operations on the thermostat will be invalid to prevent children from playing with the thermostat or misoperation because of curiosity.
Note that setting child lock locally must be done after installation.

TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig5

Press the knob and hold on for more than 3 seconds.
A symbolTESLA TSL TRV GS361A Smart Thermostatic Valve Style - sambly3 appears to indicate that the child lock has been enabled. Repeated operation 1 will un-enable the child lock function.
5.4 Installation of Tesla Smart APP
Scan the QR code as below, and get and install Tesla Smart APP for IOS and Android systems.

TESLA TSL TRV GS361A Smart Thermostatic Valve Style - qr codehttp://tsl.sh/app

Tesla Smart APP
5.5 Set gateway of Tesla Smart
After installing Tesla Smart APP, it is necessary to operate the network setting of the Tesla Smart ZigBee Hub.

Login to the APP after registration
Click ‘Add Device’
Select ‘Tesla Smart ZigBee Hub’
Make sure the LED is always on and click to next
Wait until the next Interface appears
Finished
5.6 Add into Tesla Smart
In standby mode, the thermostat will enter the matching mode by pressing the knob three times quickly.
The matching process is limited to 2 minutes, cannot be interrupted halfway, and then automatically withdrawn.

Click ‘Add sub device’
Find out ‘Thermostat’ and click it to match.
Click the knob 3 times quickly.
Wait until next
Successfully Interface appears
Main page
5.7 Mode selection in APP
It supports switching Automatic mode, Manual mode, and Anti-freezing mode in APP. Please refer to the introduction of section 5.1 for the differences between different modes. TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig6

5.8 Set temperature in APP
The temperature settings in different modes are supported in APP, and the operation can be accomplished by dragging the adjusting ball simply. (Drag the adjusting ball to set the temperature.)

5.9 Set child lock in APP
Child lock can be enabled or canceled by APP, as shown in the following figure. When the child lock function is enabled, all operations on the thermostat will be invalid to prevent children from playing with the thermostat or misoperation because of curiosity.TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig7

Click on the window button to enable or cancel the window detection function.

5.10 Setwindowdetection
The window detection function can be enabled or canceled by APP, as shown in the following figure. When the window opening detection function is enabled, if the thermostat detects that the window is opened, the valve will be closed for 30 minutes to reduce heat loss. The window detection function is opened by default. If it has been shut down, it can be reopened according to the following steps.TESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig8

Click on the valve button to enable or cancel the valve detection function.

5.11 Set valve detection
The valve detection function can be turned on or off by APP, as shown in the following figure. When the valve detection function is opened, when necessary, it will run its own valve inspection procedures. The valve detection function is opened by default. If it has been shut down, it can be reopened according to the following stepsTESLA TSL TRV GS361A Smart Thermostatic Valve Style - Fig9 Click on the valve button to enable or cancel the valve detection function.
5.12 Automatic Mode Settings

Click the button
Click ‘Add timing’
Set the time and temperature and save.
Save successfully and click ‘Back’.
Finished
Technical Specifications

Power input DC3V(AAx2 A Ikalinity
Standby current Without network 5100 p A Networking 5120 p A
Maximum current S 8 0 0 mA
Bluetooth version ZigBee ®
Wireless distance of 30 meters in an open-air

Setting temperature Automatic mode 5–30 C°
Manual mode 5–30 C°
Anti-freezing mode 5–15 C°
Measurement intervals Once every 2 minutes.
Valve stroke 6 mm is the longest
Noise level < 30dB(A)
Environment -20 65 C°, 59570RH Noncondensate
Environmental standards RoHS
Size 0 57x89mm
W eight –192g Include batteries
Statement
The information in the User‘s Manual is absolutely correct at the time of publication, however, we are not responsible for the application of this document. The application mentioned in this document is for illustration purposes only. We do not guarantee or represent that these applications without further modifications are appropriate and that we also have the right to modify the product without any notice. For the latest information, please refer to our website http://www.teslasmart.com.
