ESP32 WROOM-32E
- Cena
- 10 €
Šifra oglasa: 13283246
Osnovne informacije
- Vrsta ponudbe
- Prodam
- Lokacija
- Osrednjeslovenska, Brezovica pri Ljubljani, Notranje Gorice
- Stanje
- novo
Opis oglasa

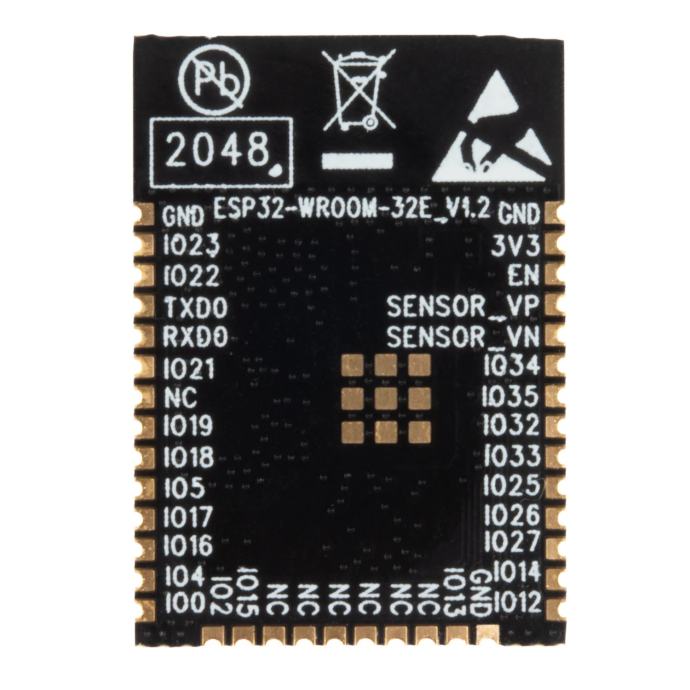

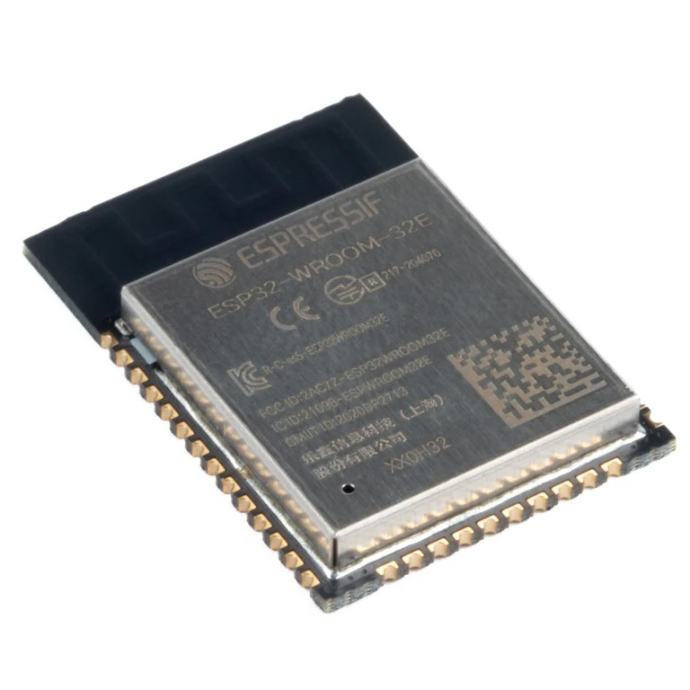

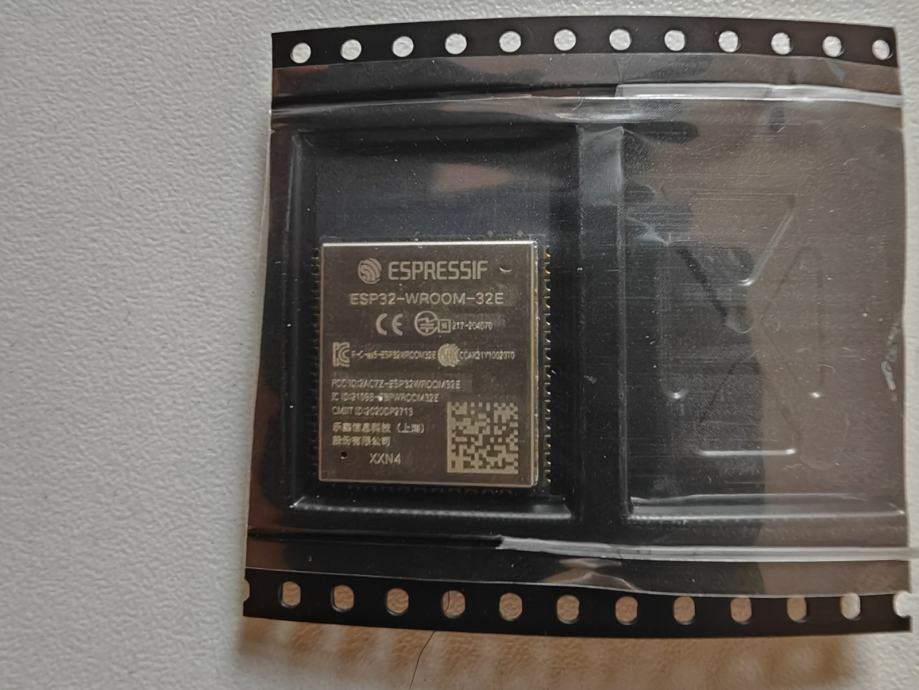

Prodam nov ESP32 WROOM-32E modul.
CPU and OnChip Memory
ESP32-D0WD-V3 or ESP32-D0WDR2-V3 embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240 MHz
448 KB ROM
520 KB SRAM
16 KB SRAM in RTC
WiFi
802.11b/g/n
Bit rate: 802.11n up to 150 Mbps
A-MPDU and A-MSDU aggregation
0.4 µs guard interval support
Center frequency range of operating channel: 2412 ~ 2484 MHz
Bluetooth
Bluetooth V4.2 BR/EDR and Bluetooth LE specification
Class-1, class-2 and class-3 transmitter
AFH
CVSD and SBC
Peripherals
SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, TWAI® (compatible with ISO 11898-1, i.e. CAN Specification 2.0)
Integrated Components on Module
40 MHz crystal oscillator
4 MB SPI flash
Antenna Options
ESP32-WROOM-32E: On-board PCB antenna
Operating Conditions
Operating voltage/Power supply: 3.0 ~ 3.6 V
Operating ambient temperature: –40 ~ 85 °C
Certification
Bluetooth certification: BQB
RF certification: See certificates for ESP32-WROOM-32E
Green certification: REACH/RoHS
Reliability Test
HTOL/HTSL/uHAST/TCT/ESD
CPU and OnChip Memory
ESP32-D0WD-V3 or ESP32-D0WDR2-V3 embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240 MHz
448 KB ROM
520 KB SRAM
16 KB SRAM in RTC
WiFi
802.11b/g/n
Bit rate: 802.11n up to 150 Mbps
A-MPDU and A-MSDU aggregation
0.4 µs guard interval support
Center frequency range of operating channel: 2412 ~ 2484 MHz
Bluetooth
Bluetooth V4.2 BR/EDR and Bluetooth LE specification
Class-1, class-2 and class-3 transmitter
AFH
CVSD and SBC
Peripherals
SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, TWAI® (compatible with ISO 11898-1, i.e. CAN Specification 2.0)
Integrated Components on Module
40 MHz crystal oscillator
4 MB SPI flash
Antenna Options
ESP32-WROOM-32E: On-board PCB antenna
Operating Conditions
Operating voltage/Power supply: 3.0 ~ 3.6 V
Operating ambient temperature: –40 ~ 85 °C
Certification
Bluetooth certification: BQB
RF certification: See certificates for ESP32-WROOM-32E
Green certification: REACH/RoHS
Reliability Test
HTOL/HTSL/uHAST/TCT/ESD
