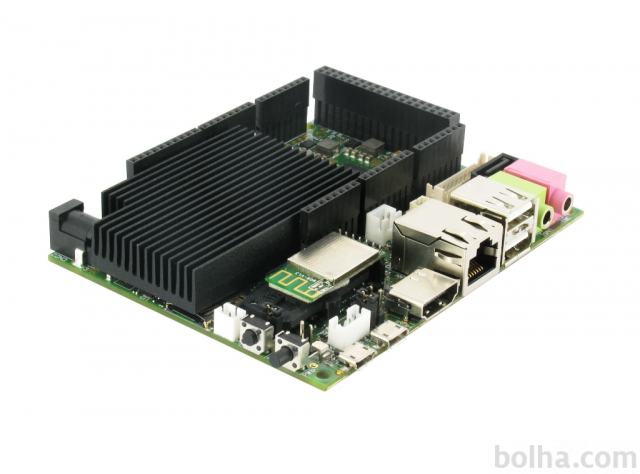

UDOO QUAD - ARDUINO ANDROID/LINUX MINI PC + DODATKI

Prodam UDOO QUAD skupaj z dodatki (ohišje, kamera, zaslon, knjiga, ...). Prevzem je možen na relaciji CE - LJ.
Info na 040 550 454

UDOO QUAD help you move your first step in the world of makers with the reliability of a powerful open source, open hardware Arduino-powered Android / Linux Mini PC.

Launched and funded in 2013 on Kickstarter with the name of UDOO, UDOO QUAD are the first single board computers of the UDOO family. Both the boards follow the same concept of an agile yet powerful next-generation computer, equipped with Linux or Android OS and enhanced by the simplicity of Arduino.

Born for educational applications, the project has sparked many interest in the world of makers and inventors, that have used the platform for the widest range of scopes, including Lunar Rovers, self-driving rovers, 3D printers and Electronic Control Units for cars. Although it is now a 3 years old baby, UDOO QUAD stays indeed among the most powerful maker boards in the market, ensuring a smooth user experience thanks to an i.MX6 processor by NXP (Quad Core for UDOO QUAD), combining together an Arduino DUE-compatible platform based on a SAM3X8E and a Linux / Android computer based on a Cortex-A9.

The board can also be used as a computer for everyday use, but you’ll take the most out of it if you exploit it as an ARM dev board and/or as an Arduino-compatible board. UDOO QUAD finally is designed to be the cornerstone of an embedded Linux development kit, counting on a useful SATA port to attach an external hard disk, as well as Wi-Fi to be ready for the IoT environment.

UDOO QUAD SPECS:
CPU NXP i.MX 6 ARM Cortex-A9 Quad core 1GHz
GPU Vivante GC 2000 + Vivante GC 355 + Vivante GC 320
Integrated accelerators for 2D, OpenGL® ES2.0 3D and OpenVG™
Atmel SAM3X8E ARM Cortex-M3 CPU (same as Arduino Due)
RAM DDR3 1GB
76 fully available GPIO: 62 digital + 14 digital/analog
Arduino-compatible R3 1.0 pinout
HDMI and LVDS + Touch
2 Micro USB (1 OTG type a+b)
2 USB type A (x2) and 1 USB connector (requires a specific wire)
Analog Audio and Mic
CSI Camera Connection
on board Micro SD card reader (boot device)
Input Voltage (recommended) 6-15 V
Ethernet RJ45 (10/100/1000 MBit)
WiFi Module
SATA

LCD SPECS:
Product: TFT-LCD Displays
Type: Capacitive
Display Resolution - Pixels: 800 x 480
Diagonal: 7 in
Backlight Type: LCD
Interface Type: I2C, Parallel
Operating Supply Voltage: 3.3 V
Operating Supply Current: 160 mA
Minimum Operating Temperature: - 20 C
Maximum Operating Temperature: + 70 C
Dimensions: 165 mm x 106.4 mm x 8.2 mm

CAMERA SPECS:
Video Format Supported: QSXGA, VGA
Number of frames per second: 15 fps, 30 fps, 45 fps, 60 fps, 90 fps, 120 fps
Display Resolution - Pixels: 2592 x 1944
Interface Type: MIPI
Operating Supply Voltage: 3.3 V
Dimensions: 21.58 mm x 8.5 mm
Description/Function: Autofocus camera IR 5.0 MP 2592x1944

BOOK SPECS:
Print Length: 208 pages
Publisher: Packt Publishing (February 20, 2015)
Publication Date: February 20, 2015
Sold by: Amazon Digital Services LLC
Language: English
