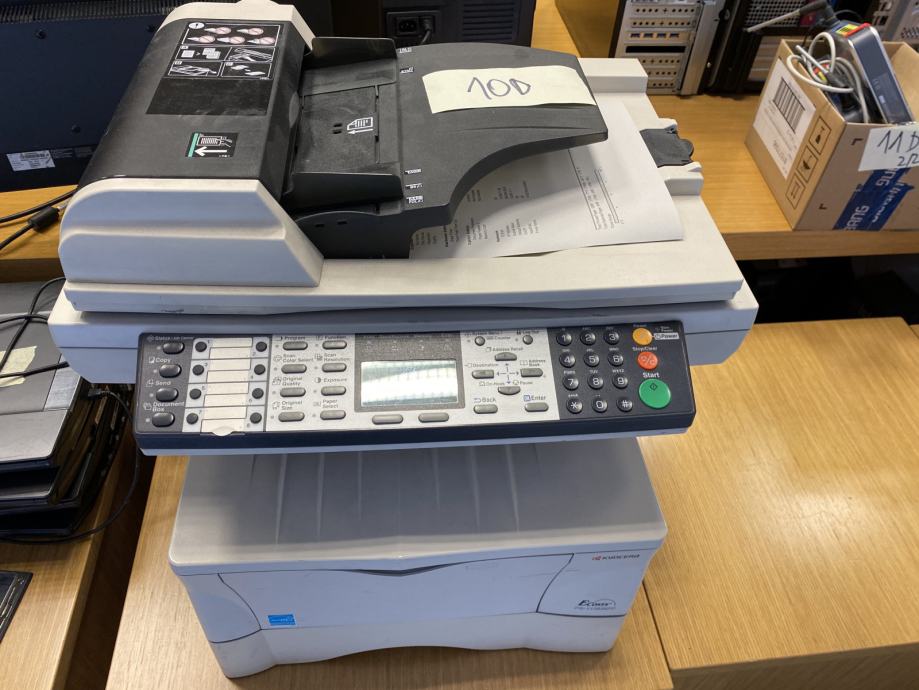

KYOCERA ECOSYS FS-1118MFP

ECOSYS technology is based on extremely durable components.
The drum, developer and fuser of the FS-1118MFP are designed
for 100,000 pages. As toner is the only consumable required,
ECOLaser printers operate with the lowest cost per page in their
class, and they are particularly environmentally friendly.
Thanks to their modular system and flexible paper options
all ECOLaser printers can be configurated to meet your exact
requirements.
General
Technology: Kyocera Laser, Mono component
Engine speed: Max. 18 pages A4 per minute
Resolution: 600 x 600 dpi, 256 greyscales (scan/copy),
1200 dpi quality (1,800 x 600 dpi) with KIR2 (print)
Time to first copy: 9.5 seconds or less
Time to first print: 8.0 seconds or less
Warm-up time: 20 seconds or less
Duty cycle: Max. 10,000 pages per month
Power source: AC 220 ~ 240 V, 50/60 Hz
Power consumption: Copying/Printing: 409 W,
Stand-by: 76 W, Power-Saving (ECOpower): 40 W
Noise (ISO 7779): Copying/Printing: 65 dB(A),
Stand-by: 43 dB(A)
Dimensions (W x D x H): 496 x 421 x 385 mm
Weight: Main unit: Approx. 14.5 kg
Certifications: TÜV/GS, CE
This product is manufactured according to ISO 9001 quality
standard and ISO 14001 environmental standard.
Paper Handling
All paper capacities quoted are based on a paper thickness
of max. 0.11 mm. Please use paper recommended by Kyocera
under normal environmental conditions.
Input capacity: 250-sheet universal paper feeder,
60-105 g/m2, A4, B5, A5, A6, Letter, Legal, Folio
50-sheet multi-purpose tray, 60-163 g/m2, A4, B5, A5, A6,
Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm),
envelopes
Max. input capacity with options: 550 sheets
Output capacity: 150 sheets face-down, 30 sheets face-up:
Copy Functions
Max. original size: A4, Folio
Continuous copying: 1-999
Memory capacity: Standard 96 MB, max. 320 MB,
1 additional DIMM slot (64, 128, 256 MB)
Zoom range: 50-200% in 1% steps
Preset magnification ratios: 6R / 4E
Digital features: Scan-once-print-many, electronic sort, auto
start, auto cassette change, density adjustment,
paper size selection, layout mode (2in1, 4in1), program,
interrupt, ECOcopy mode, job reservation, department code
(20 codes)
Exposure mode: Auto, manual: 7 steps
Image adjustments: Text + photo, text, photo
Print Functions
Processor: PowerPC 750CXr / 300 MHz
Memory: Standard 96 MB (64 MB + 32 MB DIMM),
max. 320 MB (1 additional DIMM slot for 64, 128, 256 MB)
Emulations: PCL6/PCL5e incl. PJL, KPDL 3 (PostScript 3
compatible) with automatic emulation sensing (AES), Line
Printer, IBM Proprinter X24E, Epson LQ-850, Diablo 630
Controller language: PRESCRIBE IIe
Fonts: 80 outline fonts accessible in all emulations,
1 bitmap font (PCL, KPDL2), 45 types of one-dimensional
barcodes, plus two-dimensional barcode (PDF-417)
Features: PDF direct printing, IPP printing, E-mail printing
System Platform
The FS-1118MFP delivers outstanding network connectivity and problemfree system administration. Kyocera’s single platform technology means
that the same driver can be used for every Kyocera PCL/PostScript print
device in the network: from single-user desktop printers to high-end
multifunctional systems. Only Kyocera offers this effortless combination
of IT sophistication and high-performance paper handling expertise.
PRESCRIBE IIe
With the Kyocera page design and control language PRESCRIBE IIe, even
complex graphics, logos and forms (even multipart forms) can be created
independently of the system and saved and updated in the printer.
Consequently, integration into print files no longer applies. They are only
accessed as required and therefore relieve the load on the network.
INTERFACES
Standard interface: High speed bi-directional parallel (IEEE 1284), USB
2.0 (Hi-Speed), Fast Ethernet 10/100Base-TX standard Multiple interface
connection (MIC): Allows simultaneous data transfer via up to three
interfaces, with each interface having its own virtual printer.
COLOUR SCAN FUNCTIONS
Functionality: Scan-to-Email, Scan-to-FTP, Scan-to-SMB, TWAIN, LDAP
Scan speed: Max. 18 originals per minute
(600 dpi / A4, b/w)
Scan resolution: 600, 400, 300, 200 dpi (256 greyscales)
Adding Memory (more than 64MB) to send 400dpi/600dpi (Colour/Gray)
Maximum scan size: A4, Folio
Original recognition: Text, photo, text + photo OCR
Interface: 10/100Base-TX, USB 2.0 (TWAIN only)
Network protocol: TCP/IP
File types: TIFF (b/w only), PDF, JPEG (colour only)
Compression format: MMR/JPEG
Applicable PC: IBM PC/AT compatible
Applicable OS: Windows 98, 98SE, Me, NT4.0, 2000, XP
Bundled software: PaperPort Deluxe 9.2
FAX FUNCTIONS (OPTIONAL)*
Compatibility: ITU-T Super G3
Modem speed: Max. 33.6 kbps
Transmission speed: 3 seconds or less (JBIG)
Scanning speed: 2.5 seconds
Scanning density: Normal: 8 dot/mm x 3.85 line/mm, Fine:
8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4
line/mm, Ultrafine:16 dot/mm x 15.4 line/mm
Maximum original size: A4, Folio
Compression method: JBIG, MMR, MR, MH
Memory: Standard 6 MB
Fax features: Network faxing, confidential, polling transmission
and reception, broadcast, sub-code, document box,
remote diagnosis
*Requires optional document processor DP-100
OPTIONS
Fax system (K)
Paper handling
DP-100 Document feeder: 50 sheets, 50-120 g/m2,
A5R-A4R, Folio
PF-17 Paper feeder: 250 sheets, 60-105 g/m2, A4, B5, A5,
Letter, Legal, Custom (148 x 210 mm to 216 x 297 mm)
Cabinet: H667mm x W407mm xD403mm
Memory
Printer memory: Max. 320 MB, 1 DIMM slot
(64, 128, 256 MB)
Interfaces: IB21E - (10/100 Base T Network Card)
IBII - (RS-232C Serial Card)
IC159 - WLAN (KU10 Port 802.11b WIRELESS LAN CARD)
Typefaces and barcodes
The 80 scalable PostScript fonts provide high flexibility for
all applications. A total of 45 integrated barcodes including
hash totals are computed automatically by the printer and
printed in the desired size, alignment and position.
KM-NET Viewer
KM-NET Viewer is an advanced network management software
tool that is compatible with all Kyocera printers and
multifunctional products as well as those of other vendors
by using the standardized protocol SNMP. The settings of
all printers on the network can be checked visually and
amended from any Windows PC. KM-NET Viewer also acts
as a valuable, real-time early-warning system by sending
email messages.
CONSUMABLES
TK-18 Toner-kit: Microfine toner for 7,200 pages with 5%
coverage (ISO 10561B)
Capacity of starter toner for 3,600 pages with 5 % coverage
(ISO 10561B)
