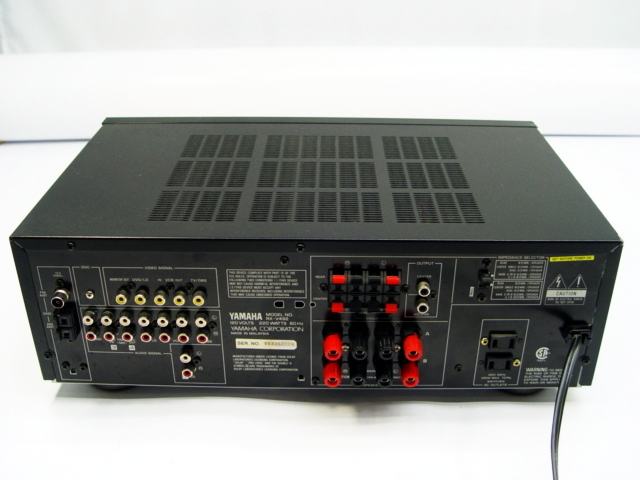

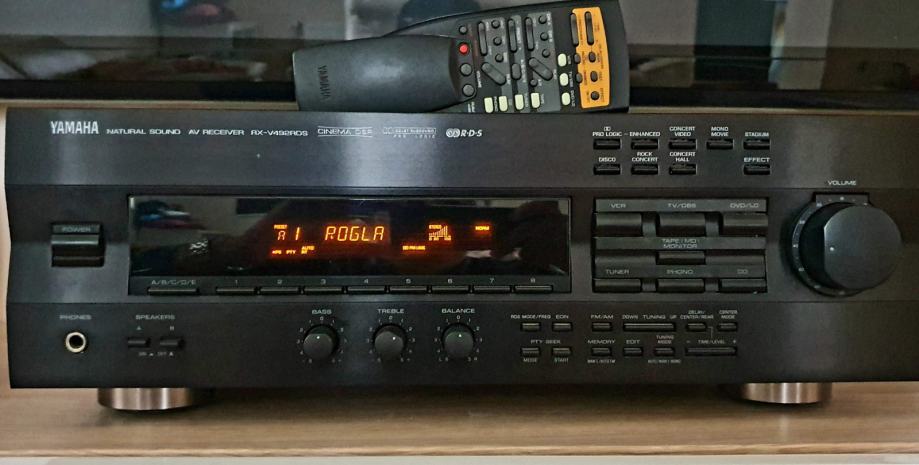

Yamaha RX-V492 - AV receiver - 5.1

Ugodno prodam Surround ojačevalnik z radijskim sprejemnikom, ji je popolnoma brezhiben in ohranjen, kakor nov. Prodam ga izključno zardi neuporabe. Kontakt 041373643

Navodila: https://manualsbrain.com/en/manuals/1106792/


Lastnosti:
AUDIO
Amplifier Output Details
70 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.04% - 2 channels (main)
70 Watt - 8 Ohm - at 1 kHz - THD 0.09% - 1 channels (center)
20 Watt - 8 Ohm - at 1 kHz - THD 0.7% - 2 channels (rear)
Response Bandwidth10 - 50000 Hz
Signal-To-Noise Ratio 93 dB
Total Harmonic Distortion 0.03 %

AUDIO SYSTEM
Type AV receiver
Subcategory AV components
Functions AV receiver
Sound Output Mode Surround Sound
Built-in Decoders Dolby Pro Logic
Surround Sound Effects CINEMA DSP
Surround System Class 5.1 channel
Digital Sound Processor (DSP)Yes
DSP Preset Qty7
DSP PresetsConcert Hall, Concert Video, Disco, Enhanced, Mono Movie, Rock Concert, Stadium
Additional FeaturesA/B/A+B speaker switch, pink noise generator
Bass ControlYes
Treble ControlYes
Built-in Clocksleep timer

POWER DEVICE
Power Outlets2 AC outlets
Typepower supply

HEADER
BrandYamaha
Product LineYamaha
ModelRX-V492
LocalizationEnglish
Packaged Quantity1

BUILT-IN DISPLAY
Typefluorescent

TUNER
Response Bandwidth20 Hz
Signal-To-Noise Ratio75 dB
Total Harmonic Distortionmono: 0.1%, stereo: 0.2%
MISCELLANEOUS
Timersleep
Colorblack
Color Categoryblack
AMPLIFIER
Input Impedance47 KOhm
Input Sensitivity150 mV

AMPLIFIER OUTPUT DETAILS
Output Power / Channel20 Watt, 70 Watt
Output Impedance / Channel8 Ohm
Frequency Response20 - 20000 Hz, at 1 kHz
Total Harmonic Distortion (THD)0.04 %, 0.09 %, 0.7 %
Channel Typecenter, main, rear
Channel Qty1, 2

RADIO
Tuner Typedigital
Tuner BandsAM/FM
Tuning Displayfluorescent display
Preset Station Qty40
Auto Preset MemoryYes
Antenna Form Factorloop AM / wire FM

INPUTS & OUTPUTS
Headphone JackYes

REMOTE CONTROL
Typeuniversal remote control
Remote Control Technologyinfrared

ACCESSORIES
Supported DevicesAV receiver, CD player / changer, cassette deck

AUDIO SPECIFICATIONS

TypeAmplifier, Radio tuner
Frequency Response10 - 50000 Hz, 20 - 15000 Hz
Signal-To-Noise Ratio75 dB, 93 dB

POWER

Form Factorintegrated
Power Outlets2 AC outlets
BATTERY / POWER
Typepower supply
CONNECTIONS
Typeaudio line-in, audio line-out, center channel audio output, center speaker output, composite video/audio input, composite video/audio output, headphones, main speakers output, monitor output, rear speakers output, subwoofer output, turntable audio input
Qty2, 3, 4
Connector TypeRCA, RCA x 2, RCA x 3, banana/spade x 2, click-fit x 2, phone stereo 6.3 mm
Connector Locationfront, rear
DIMENSIONS & WEIGHT
Depth10.5 in
Width17.1 in
Height5.9 in
Weight19.18 lbs
SERVICE & SUPPORT DETAILS
Typelimited warranty
Service Includedparts and labor
Full Contract Period2 years
SERVICE & SUPPORT
Type2 years warranty GENERAL
Manufacturer Yamaha
