YAESU FTDX-101MP 200W

Yaesu FTdx-101D

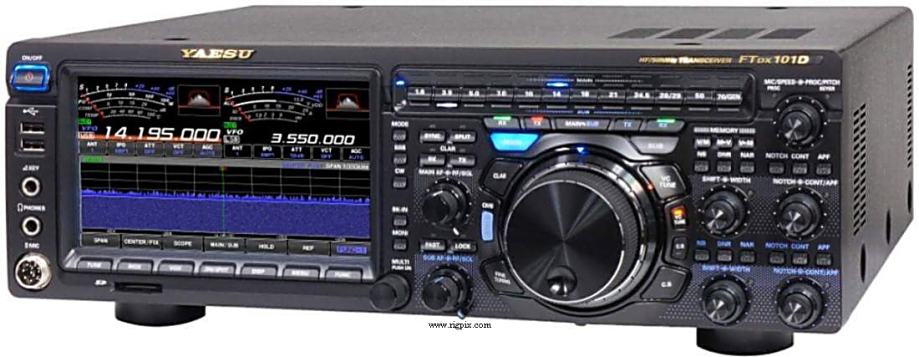

A picture of Yaesu FTdx-101D
SPECIFICATIONS
GENERAL
Type: Amateur HF/VHF transceiver
Frequency range: TX: 10-160 m + WARC and 60 m / 6 m
RX: 0.03-75 MHz
(The European version also features 4 m/70 MHz)
Tuning steps: 1 / 5 / 10 Hz (SSB/CW)
10 / 100 Hz (AM/FM)
Mode: AM/FM/SSB/CW/RTTY/PSK
Channels/memory management: 99 regular (Can be organized into 6 groups with 20 memories in each)
9 PMS pairs
Repeater shift/offset: ±0-1 MHz in 10 KHz steps (10 m)
±0-4 MHz in 10 KHz steps (6 m)
Power supply: 13.8 VDC
Current drain/power consumption: RX: 3.5-4 A
TX: Max 23 A
Antenna impedance/connector: 50 ohm (ATU off)/ 3*SO-239
HF: 16.7-150 ohm (ATU on)
6 m: 25-100 ohm (ATU on)
Dimensions (W*H*D): 420*130*355 mm (16.6*5.1*12.7")
Weight: 12 Kg (26.5 lbs)
Other features: CTCSS/PL. Voice memory. Dimmer. RTTY and PSK encode/decode.
SD/SDHC card slot. Clock. 7-inch full color touch TFT. Twin RX.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 9.005 MHz (Main) - 8.9 MHz (Sub)
2nd IF: 24 KHz (Main/Sub)
Sensitivity: AM (10 dB S+N//N. BW=6 KHz)
0.5-1.8 MHz: 6.3 uV
1.8-30 MHz: 2 uV (Amp2 on)
50-54 MHz: 1 uV (Amp2 on)
70-70.5 MHz: 2 uV (Amp2 on), Europe only
FM (12 dB SINAD. BW=12 KHz. Amp2 on)
28-30 MHz: 0.25 uV
50-54 MHz: 0.2 uV
70-70.5 MHz: 0.25 uV, Europe only
SSB/CW (10 dB S/N. BW=2.4 KHz. Amp2 on)
1.8-30 MHz: 0.16 uV)
50-54 MHz: 0.125 uV
70-70.5 MHz: 0.16 uV, Europe only
Selectivity: AM (BW=6 KHz. Width=Center)
6 KHz (-3 dB), 15 KHz (-60 dB)
FM (BW=12 KHz. Width=Center)
12 KHz (-6 dB), 25 KHz (-60 dB)
SSB (BW=2.4 KHz. Width=Center)
2.4 KHz (-3 dB), 3.6 KHz (-60 dB)
CW (BW=500 Hz)
500 Hz (-3 dB), 750 Hz (-60 dB)
Image rejection: HF: 70 dB
6 m: 60 dB
AF output power/speaker: 2.5 W at 10% distortion / 4 ohm
External speaker connector: 3.5 mm, 4-16 ohm




TRANSMITTER SECTION
RF output power:
HF Max 100 W (AM 25 W)
6 m Max 100 W (AM 25 W)
4 m Max 100 W (AM 25 W), Europe only
Modulation system: AM: Low-level, early stage
FM: Variable reactance
SSB: Balanced
FM deviation: FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: HF: Less than -50 dB
6 m: Less than -63 dB
Microphone impedance/connector: 600 ohm nominal (200 to 10000 ohm) / 8-pin




MISCELLANEOUS
Manufactured: 2019-20xx
Additional info: Yaesu's first SDR transceiver.
New price 2019 in Sweden: SEK 39995:-
Related documents: FTdx-101 series brochure (26 MB)
User manual (19 MB)
Power device: Two RD100HHF1 in push-pull
Modifications:
Reviews:
Options/Accessories:
CT-178
FC-40
FH-2
M-1
M-100
MD-100A8X
MD-200A8X
SP-101
SSM-75G
VCT-101
VL-1000/VP-1000
XF-128CN
XF-128SN
XF-129CN
XF-129SN
YH-77STA VL-1000 linear amplifier connection cable
External automatic antenna tuner
Remote control keypad
Reference microphone
Dual element microphone
Desk microphone
Ultra HiFi desk microphone
External speaker
Standard hand microphone (as supplied)
VC-Tuning unit (for Sub-band)
Linear amplifier/power supply
Narrow CW filter, 300 Hz. IF: 9.005 MHz, Main band
Narrow SSB filter, 1.2 KHz. IF: 9.005 MHz, Main band
Narrow CW filter, 300 Hz. IF: 8.9 MHz, Sub band
Narrow SSB filter, 1.2 KHz. IF: 8.9 MHz, Sub band
Lightweight stereo headphones
