MOTU TRACK16 Hybrid Remote Control

MOTU TRACK 16 Hybrid Remote Control

USB and Firewire hybrid audio interface
24 bits 192 kHz
8 analog inputs and outputs
Inputs for microphones (including phantom power)
Guitars and line signals
1x ADAT / S / PDIF input and output
Sym. and unsym. Input / output
2 headphone outputs (3.5mm and 6.3mm)
Standalone function - Operation as a 16 channel digital mixer without computer
MIDI input and output
DSP mixer with EQ and compressor for each input / output channel
4 x 14 LED display
10 backlit buttons
Extensive software for real-time analysis and more
SMPTE timecode
Computer connection: 1x Firewire 400 (Type B - Bus powered) and 1x USB 2.0 (without bus power)

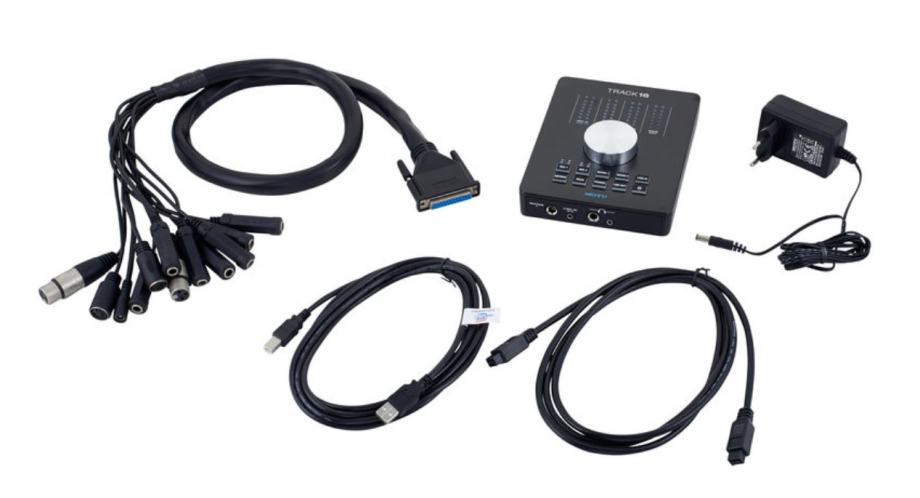

including power supply
Windows and Mac drivers with 32 and 64 bit (requires Windows from Vist SP2 Mac 10.5.8 - PPC G5 and Intel)


Feature highlights

16x14 audio interface for Mac and Windows

All are available simultaneously and operate independently.

Connects to your Mac or PC via either bus-powered Firewire or hi-speed USB2.

Simply tap into the main knob.

Sits neatly next to your computer keyboard or laptop.

16-bus digital mixer

Routes and mixes all sixteen inputs to any output pair.

Each output pair (main outs, line outs, phones, 4x optical, and a return bus) can have a completely different mix of all eight inputs, with or without computer tracks.

2x pre-amp equipped with individual 48V phantom power, -20dB pad, Precision Digital Trim ™, and plenty of gain.

2x hi-Z guitar inputs with Precision Digital Trim.

On balanced TRS quarter-inch jacks. Connect a keyboard, synth, drum machine or other analog source.

On balanced TRS quarter-inch jacks. Connect directly to powered speakers (or other line-level analog destinations).

Separate line-level outputs for secondary studio monitors or other destinations.

Can not find your headphone adapter? No problem. Both a quarter-inch and eighth-inch jack are provided. Or connect two pairs of phones simultaneously.

Supports standard sample rates up to 192 kHz.

Digitally controlled analog trim on all inputs provides adjustments in approximately 1 dB increments. Fine-tune the balance of your inputs and then save / recall trim configurations.

Attractive on-screen graphic instrumentation including real-time FFT display, spectrogram "waterfall" display, oscilloscope, XY plot and linear or polar phase analysis.

Stand-alone operation

Bring the Track16 to your gig, with or without a computer. Just plug in the included power adapters and you're ready to go.

Add additional interfaces for more I / O as your needs grow.

Directly resolves to (or generates) time code via any quarter-inch input or output, without the need for an extra synchronizer.

DSP-driven phase lock engine and internal clock source produces imperceptibly low jitter characteristics even when the track16 is resolved to an external clock source via SMPTE time code.

Can be used with Volta to manipulate and sequence voltage-controlled modular synthesizers from a host DAW.

Compatible with all current and recent generation Macs and PCs.

Includes ASIO, WDM, Wave, Core Audio, and Core MIDI drivers. Supports all popular Mac and Windows audio software.

100% compatible with all host-based effects processing in today's popular audio programs.

Includes AudioDesk full-featured sample-accurate workstation software for Mac with recording, editing, mixing, real-time 32-bit effects processing & sample-accurate sync.

No need for external power when operating as a FireWire interface connected to a computer. A power supply is included for standalone or USB2 operation.

Chassis dimensions: 5 (W) x 8,375 (L) x 1,125 (H) inches (12.7 x 21.27 x 2.86 cm). Knob height adds approximately 0.5 inch (1.27 cm) from the top surface.

Included DB25 breakout cable with audio connectors is approximately 44 inches (111.76 cm) long.
