ZNIŽANO - Profesionalna zvočna kartica ESI Waveterminal 192M
- Cena
- 60 €
Šifra oglasa: 12851426
Osnovne informacije
- Vrsta ponudbe
- Prodam
- Lokacija
- Posavska, Brežice, Brežice
- Stanje
- rabljeno
Opis oglasa
Več na spodnji strani:
https://www.soundonsound.com/reviews/esi-pro-waveterminal-192m

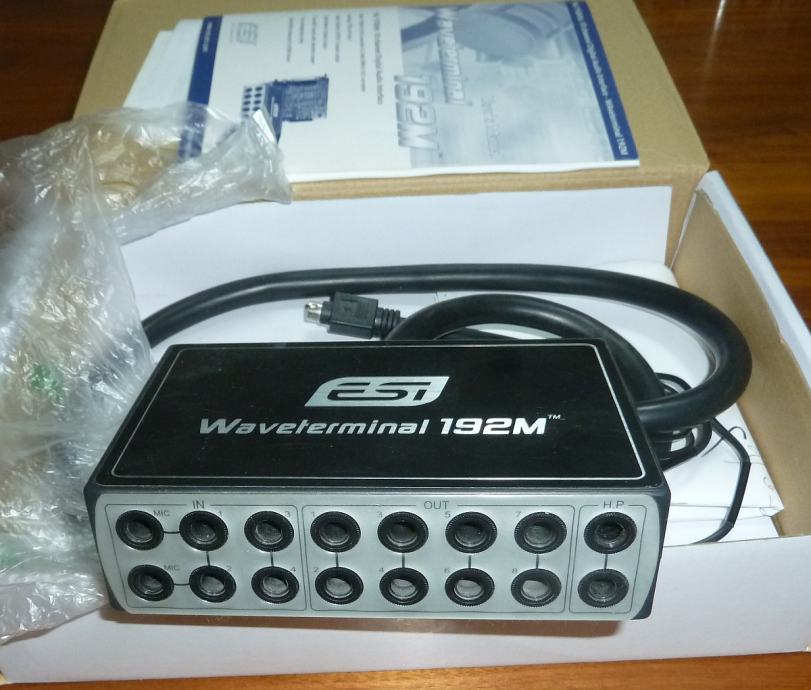

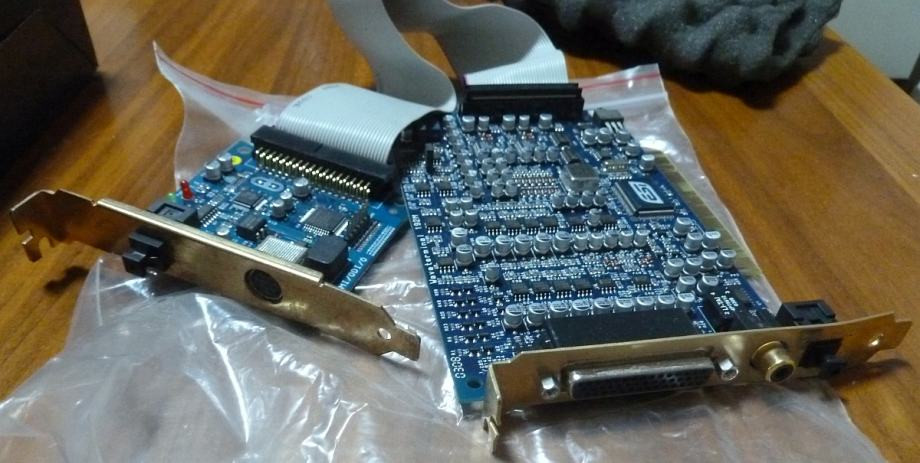

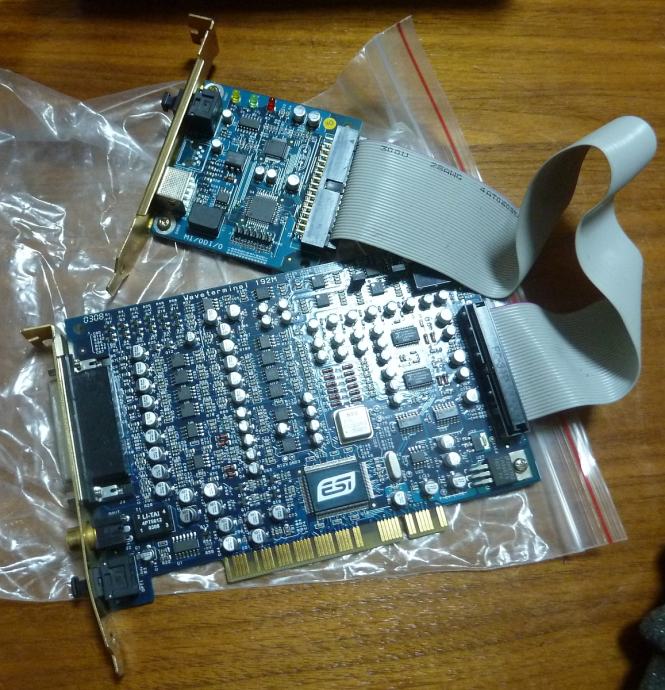

Na prodaj osnovna kartica z zunanjim priključitvenim modulom + MIDI I/O razširitvena kartica (glej slike)

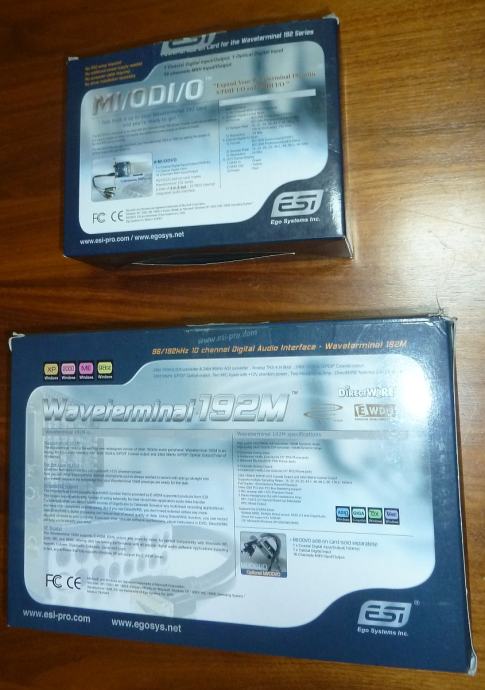

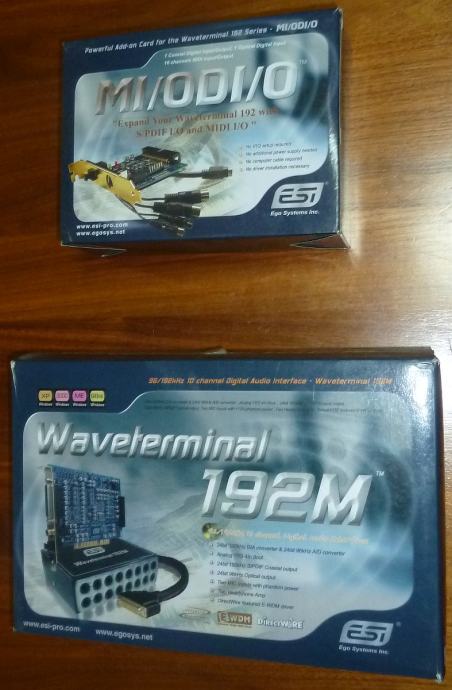

Originalno pakiranje, malo rabljeno, za hobi.
Brief Specifications:
Mic inputs: two, balanced/unbalanced TRS-wired jack with 1.5kΩ input impedance, optional individual +12V phantom power, 45mV maximum sensitivity, +35dB fixed gain and up to 22dB additional variable gain.
Line inputs: four, unbalanced TRS-wired jack with 10kΩ input impedance, +4dBu nominal level, +17.5dBu maximum.
Analogue outputs: eight, plus two stereo headphone, unbalanced quarter-inch jack with 100Ω impedance, nominal output level +4dBu.
A-D converters: Sigmatel STAC9460S supporting up to 96kHz recording.
Input dynamic range: 100dBA typical.
D-A converters: Sigmatel STAC9460S supporting up to 192kHz playback.
Output dynamic range: 104dBA typical.
Frequency response: 20Hz to 22.5kHz at 48kHz sample rate (no limits specified).
Resolution: 24-bit.
Supported analogue sample rates: 16, 22, 24, 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz.
Digital I/O: co-axial and optical outputs, at 32kHz to 192kHz (196.4 and 192 kHz are not recommended at optical port).
Lokacija Brežice
Lahko pošljem po pošti
https://www.soundonsound.com/reviews/esi-pro-waveterminal-192m
Na prodaj osnovna kartica z zunanjim priključitvenim modulom + MIDI I/O razširitvena kartica (glej slike)
Originalno pakiranje, malo rabljeno, za hobi.
Brief Specifications:
Mic inputs: two, balanced/unbalanced TRS-wired jack with 1.5kΩ input impedance, optional individual +12V phantom power, 45mV maximum sensitivity, +35dB fixed gain and up to 22dB additional variable gain.
Line inputs: four, unbalanced TRS-wired jack with 10kΩ input impedance, +4dBu nominal level, +17.5dBu maximum.
Analogue outputs: eight, plus two stereo headphone, unbalanced quarter-inch jack with 100Ω impedance, nominal output level +4dBu.
A-D converters: Sigmatel STAC9460S supporting up to 96kHz recording.
Input dynamic range: 100dBA typical.
D-A converters: Sigmatel STAC9460S supporting up to 192kHz playback.
Output dynamic range: 104dBA typical.
Frequency response: 20Hz to 22.5kHz at 48kHz sample rate (no limits specified).
Resolution: 24-bit.
Supported analogue sample rates: 16, 22, 24, 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz.
Digital I/O: co-axial and optical outputs, at 32kHz to 192kHz (196.4 and 192 kHz are not recommended at optical port).
Lokacija Brežice
Lahko pošljem po pošti
