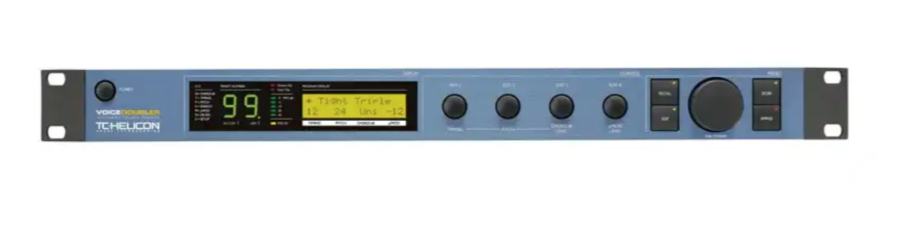

TC Helicon Voice Doubler

VoiceDoubler

TC-Helicon’ VoiceDoubler has been garnering an impressive list of followerswhich include The Police and Led Zeppelin used it on their reunion along with countless others.



Live vocal overdubbing from a single mic - No time travel required



It takes skill, time and punch-ins to create a properly doubled vocal track in the studio and it's nearly impossible to accurately create the effect in live performance. The pitch and timing cues that tell your brain how many people are singing are subtle and complex. Imagine a front-of-house effects processor that creates up to four humanized overdubs - live! With TC-Helicon's VoiceDoubler, overdubbed vocals can be "tight and intimate" or "loose and lively". What's more, TC-Helicon includes pristine emulations of classic detune, microshift and chorus effects. VoiceDoubler, with its timeless combination of natural and effected doubling, finally makes live vocals sound like the CD.



Main Features:

Creates up to four virtual overdubs of a performer's voice in real time
Uses VoicePro's advanced inflection and FlexTime blocks to create a multitracked overdub sound
Additional effects include emulations of classic microshift, chorus and detune
One VoiceDoubler can be used for each onstage singer to match recorded vocals and create virtual choirs
Each overdub voice has unique adjustable characteristics such as gender, vibrato and inflection
Secondary input for polyphonic instruments
Easy to setup and use - 50 factory/ 50 user presets and top level editing

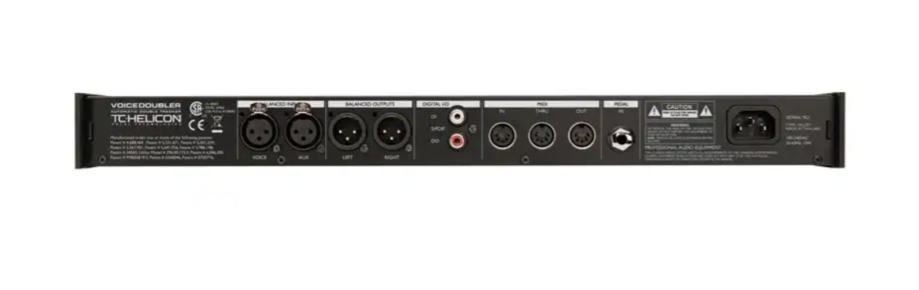

Balanced analog XLR I/O and AES/EBU digital I/O

Digital Inputs and Outputs:
Connectors: RCA Phono (S/PDIF)
Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
Sample Rates: 44.1 kHz, 48 kHz
Frequency Response DIO: DC to 23.9 kHz ± 0.01 dB @ 48 kHz
Analog Inputs:
Connectors: XLR, balanced
Impedance, Bal / Unbal: 21 kOhm / 13 kOhm
Max. Input Level: +24 dBu
Min. Input Level for 0 dBFS: 0 dBu
Sensitivity: @ 12 dB headroom: -12 dBu to +12 dBu
A to D Conversion: 24 bit, 128 x oversampling bitstream
A to D Delay: 0.65 ms / 0.70 ms @ 48 kHz / 44.1 kHz
Dynamic Range: 100 dB typ, 20 Hz - 20 kHz
THD: typ < 92 dB (0,0025 %) @ 1 kHz
Frequency Response: +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk:
