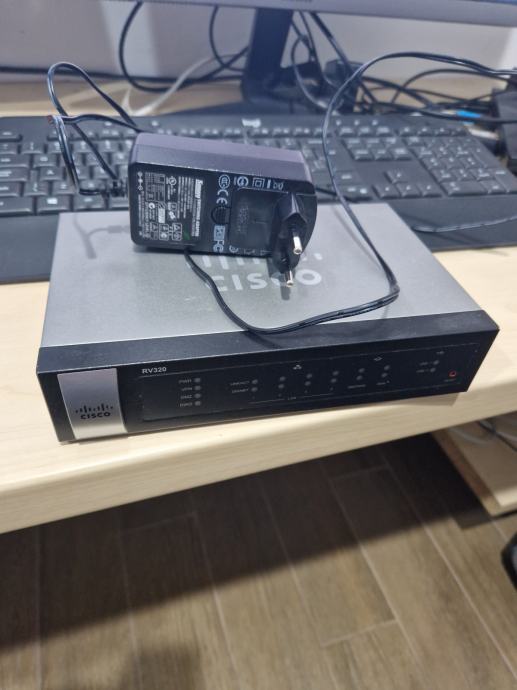

CISCO Router RV-320, Dual-WAN, VPN, Gigabit porti

Cisco RV320 Dual Gigabit WAN VPN Router črne barve. Imam ga na rezervi v škatli več kot leto dni (če bi ga slučajno še kdaj rabil a ga nisem rabil)

Ima 6 LAN in 1 USB port:
1x WAN 1000Mbps port
1x DMZ/WAN 1000Mbps port
4x 1000Mbps porti
1x USB

Dual WAN
● Dual Gigabit Ethernet Ports
● Failover
● Load balancing

Standards
● 802.3, 802.3u
● IPv4 (RFC 791)
● IPv6 (RFC 2460)

WAN connectivity
● Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent
● Static IP
● Point-to-Point Protocol over Ethernet (PPPoE)
● Point-to-Point Tunneling Protocol (PPTP)
● Transparent bridge
● DNS relay, Dynamic DNS (DynDNS.org, 3322.org), DNS local database
● IPv6

Routing protocols
● Routing Information Protocol (RIP) v1 and v2, and RIP for IPv6 (RIPng)
● Inter-VLAN routing
● Static routing
● VLANs supported: 7

Network Address Translation (NAT)
● Port Address Translation (PAT)
● One-to-one NAT
● NAT traversal

Protocol binding
Protocols can be bound to a specific WAN port for load-balancing purposes

Network edge (DMZ)
● DMZ port
● DMZ host

Dual USB 2.0 ports

Storage and 3G/4G modem support

Firewall
● SPI firewall
● Denial-of-service (DoS) prevention: ping of death, SYN flood, IP spoofing, WinNuke
Access rules

● Schedule-based access rules
● Up to 50 entries

Port forwarding
Up to 30 entries

Port triggering
Up to 30 entries

Blocking
Java, cookies, ActiveX, HTTP proxy

Content filtering
Static URL blocking or keyword blocking

Secure management
● HTTPS web access to device manager
● Username/password complexity enforcement

802.1Q VLAN
7 VLANs supported

VPN

IP Security (IPsec)
● 25 IPsec site-to-site tunnels for branch office connectivity
● 25 IPsec VPN tunnels via third-party clients such as “The GreenBow” for remote- access VPN connectivity

SSL VPN
10 SSL VPN tunnels for remote client access

PPTP
10 PPTP tunnels for remote access

Encryption
● Data Encryption Standard (DES)
● Triple Data Encryption Standard (3DES)
● Advanced Encryption Standard (AES) encryption: AES-128, AES-192, AES-256

IPsec NAT traversal
Supported for gateway-to-gateway and client-to-gateway tunnels

VPN pass-through
PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec

Advanced VPN
● Dead peer detection (DPD)
● Split DNS
● VPN backup
● Internet Key Exchange (IKE) with certificate

Service-based QoS
Rate control or priority

Rate control
Upstream/downstream bandwidth per service

Prioritization types
Application-based priority on WAN port

Priority
Services mapped to one of two priority levels

Performance - IPsec VPN throughput
100 Mbps

SSL VPN throughput
20 Mbps

Concurrent connections
20,000


Web user interface
Browser-based device manager (HTTP/HTTPS)

Management protocols
● Web browser (HTTP/HTTPS)
● Simple Network Management Protocol (SNMP) v1, v2c, and v3
● Bonjour

Event logging
● Local log
● Syslog
● Email alert
● Short Message Service (SMS)

Upgradability
● Firmware upgradable through the web browser
● Import or export configuration filesfrom or to a USB flash drive
